Welcome to the Mercedes mirror showcase, here you can browse products for different Mercedes models.  The full featured mirror includes auto dimming, Homelink and a integrated compass.  Other variants are available as well.  You can opt to have auto dimming only, auto dimming and compass only or auto dimming and Homelink only.    Normal processing time is 3-5 days, assuming parts are in stock.

NOTE: A basic assumption made is that your vehicle has a sunroof.  The switched 12 volt power needed for these auto dimming mirrors is pulled from the sunroof switch in the headliner.  If you do not have a sunroof or you own a  convertible,  you may not have a switched 12 volt power source readily available in the map light area.  Please be aware that additional wiring may be necessary in these scenarios.  This situation is not covered in the installation guide.

Click here to download the Installation & Setup Guide.


IMPORTANT:  Homelink only operates on the frequencies of 286-399 MHz (FCC restricts several bands between 322 and 335 MHz).  If your outside of the USA, make sure your garage door/gate system operates within these frequencies.  420-433 MHz systems are not compatible with these Homelink mirrors.  Also, if your garage door uses the Security+ 2.0 radio system (e.g. Liftmaster 8360/8550 etc.) you will need to purchase a Homelink Repeater kit that will convert the 310 MHz Security+ to 315 MHz Security+ 2.0.  Then my Homelink mirrors can be used to control your garage door.  I do not sell the repeater kits, but they can be purchased from the resellers link below.



 Homelink Repeater Kit

___________________________________________________________________________________________________________







Click on the thumbnail images to see a larger version

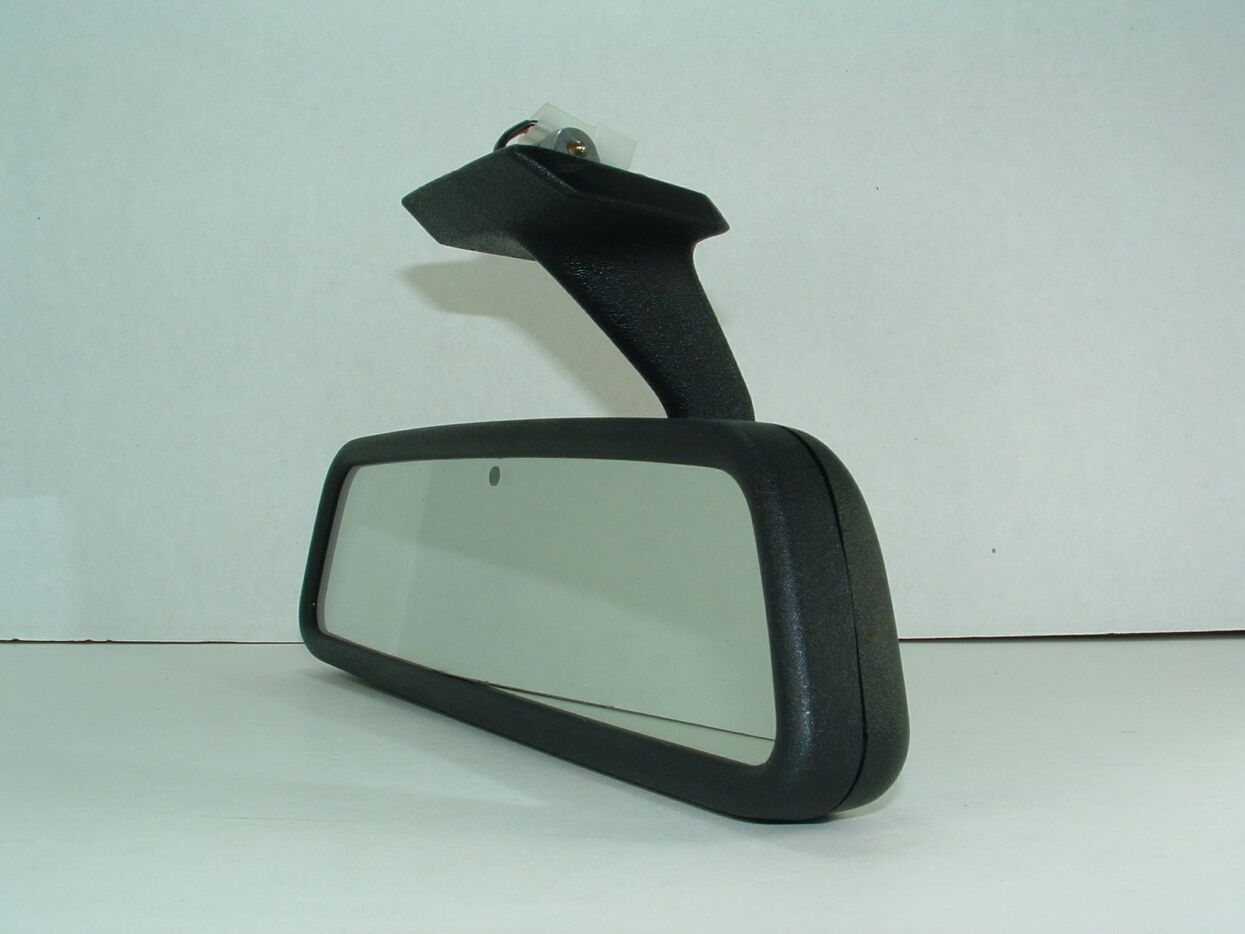

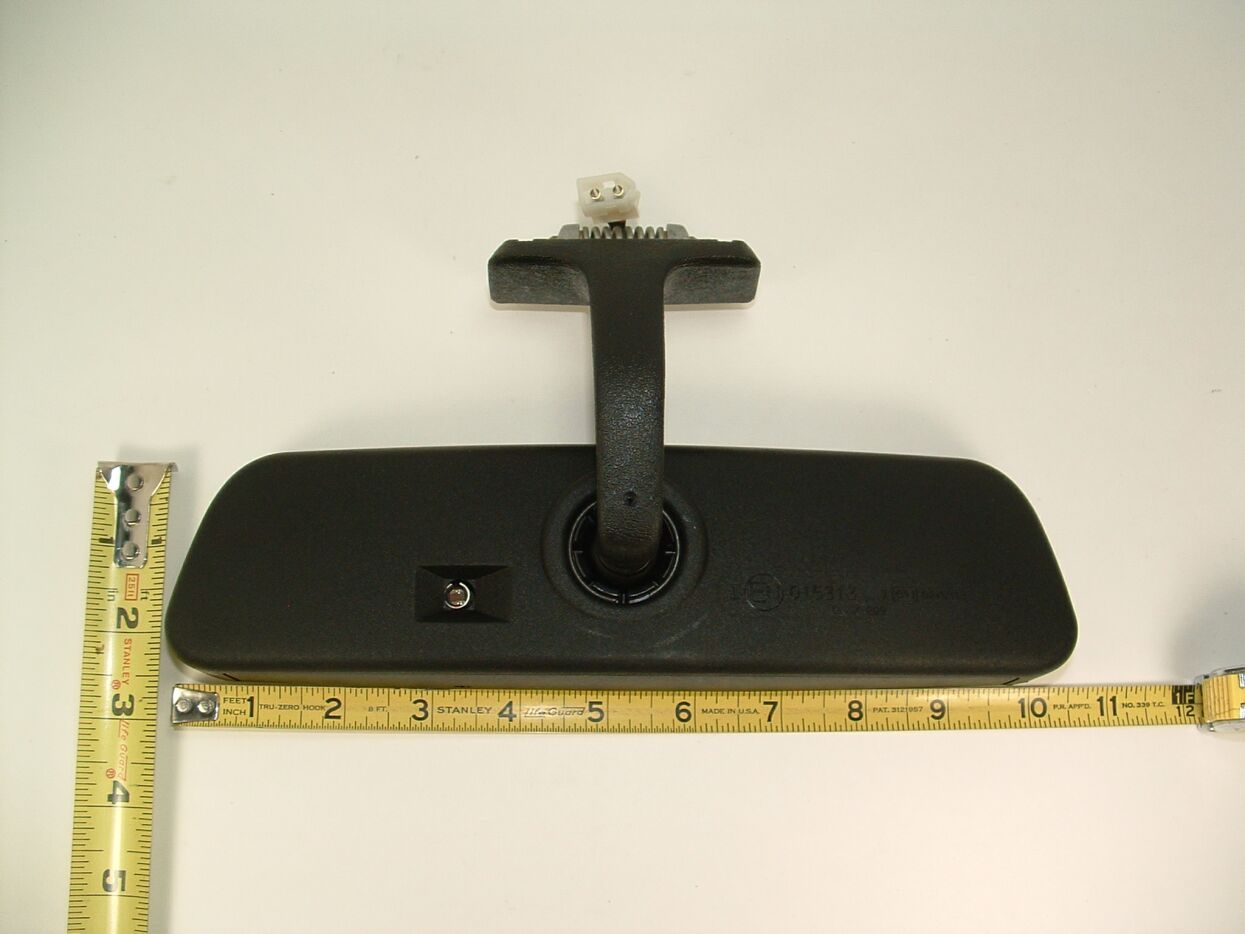

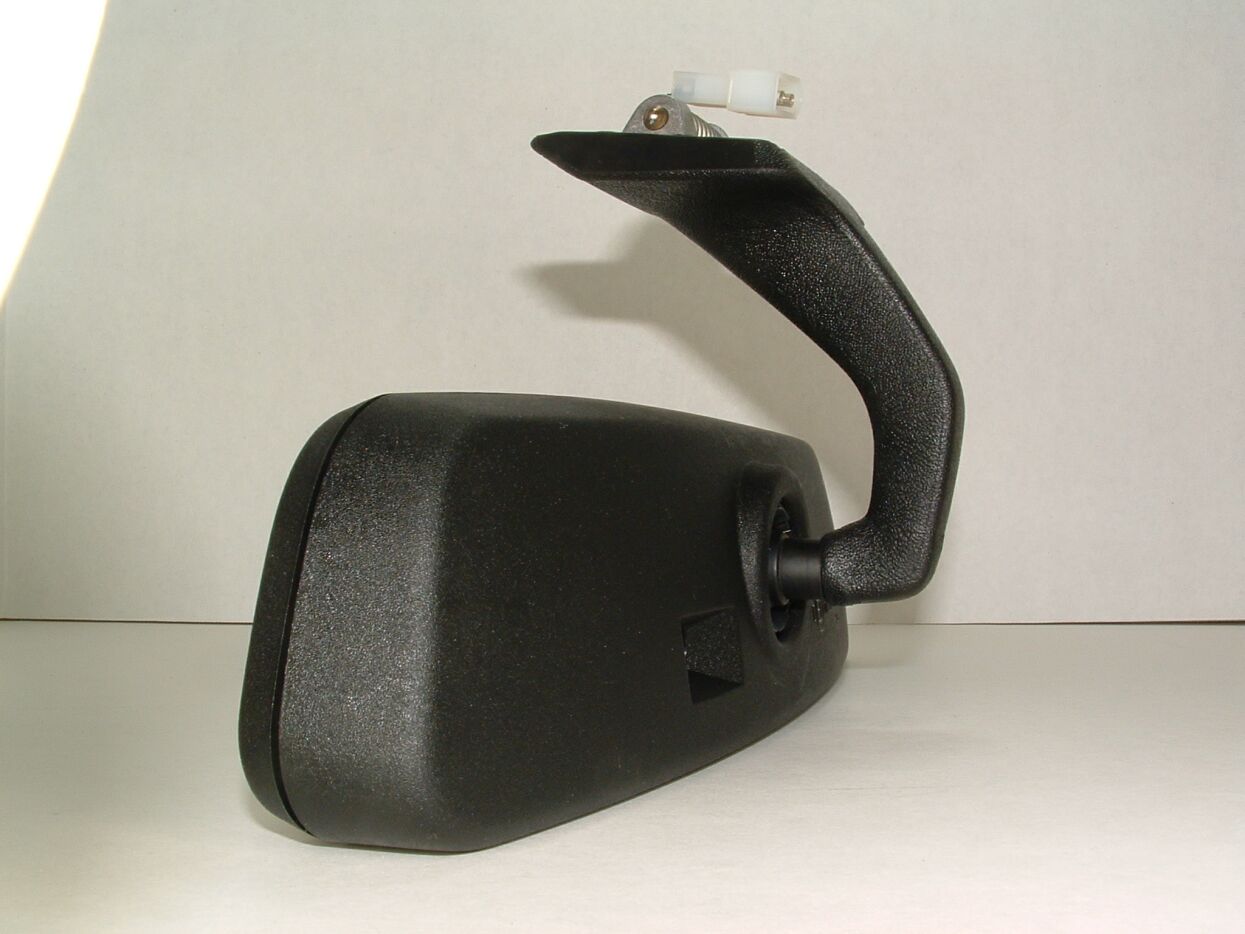

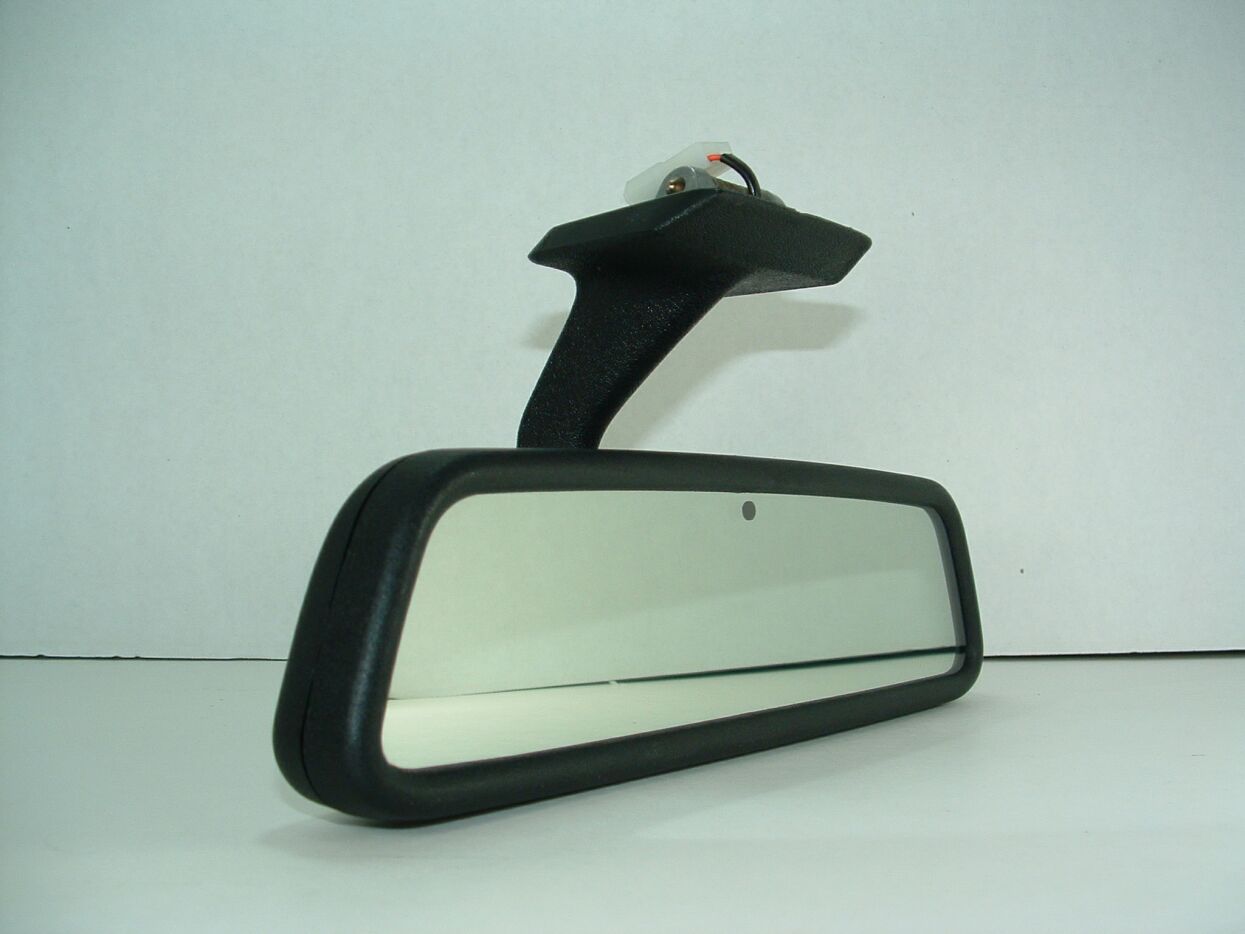

Mercedes W124/W201 Auto Dim With Homelink & Compass - Model 2M-1


This is the 260e/300e/400e/500e & 190e mirror.  The mounting stalk for both the W124 & W201 are the same.  Wiring is internal to the mirror/stalk and replicates the OEM look of the original non-auto dimming mirror.

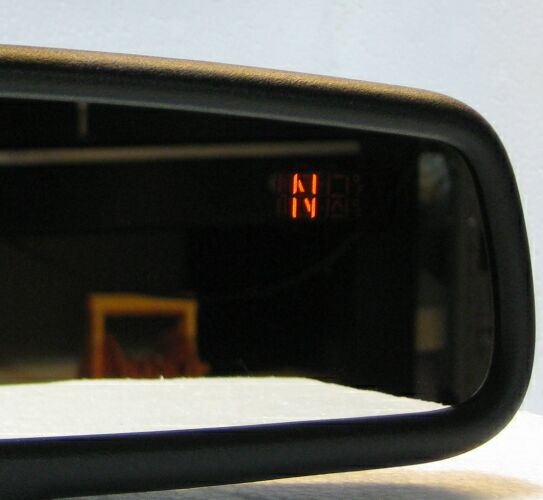

Compass illumination is amber and dims when the mirror dims.  The compass can not be turned off.

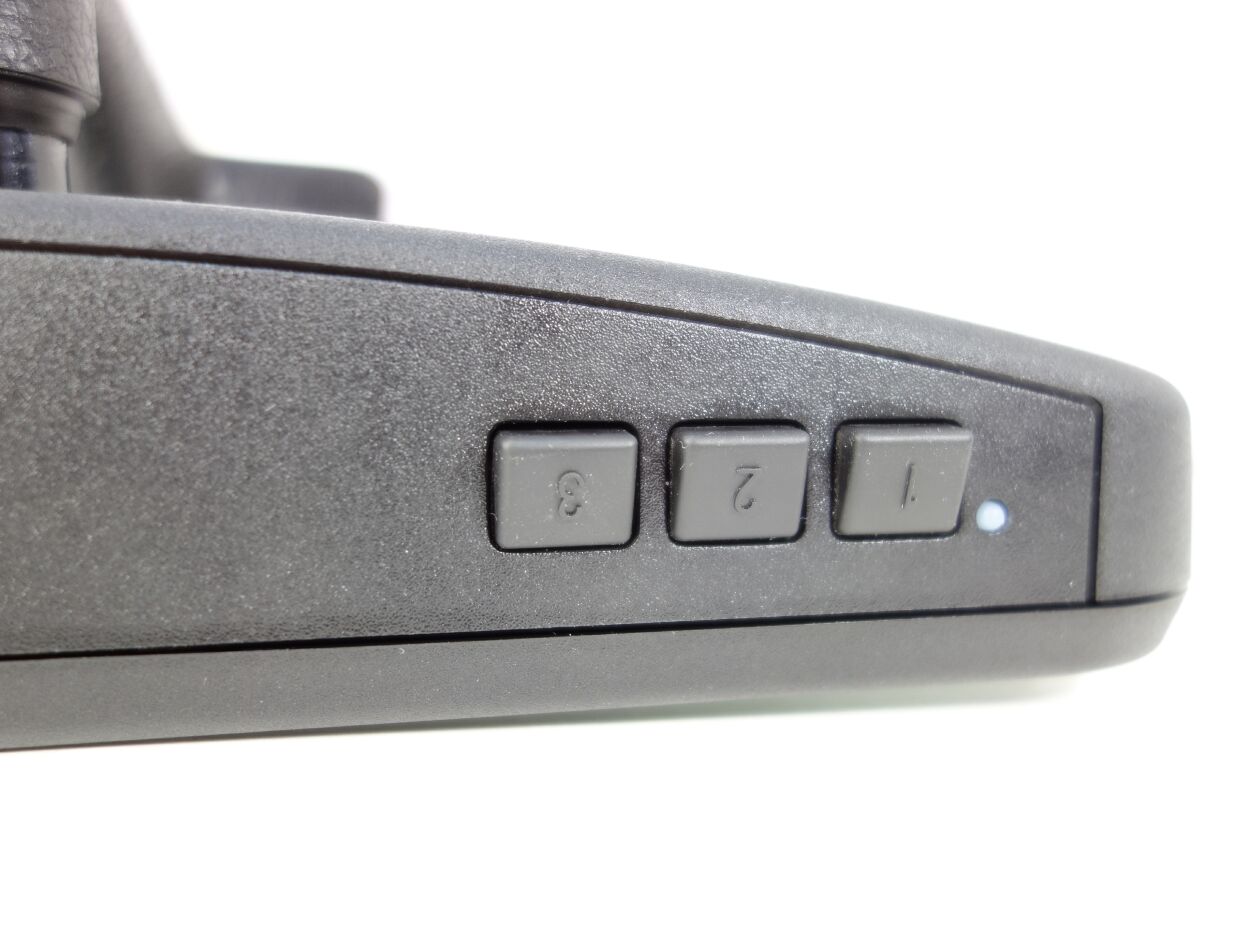

This mirror has Homelink and can control three garage doors/gates.  See Homelink notes at the top of the page.

Shipping


Click the INQUIRY tab if you have a question.


_______________________________________________________________________________________________________

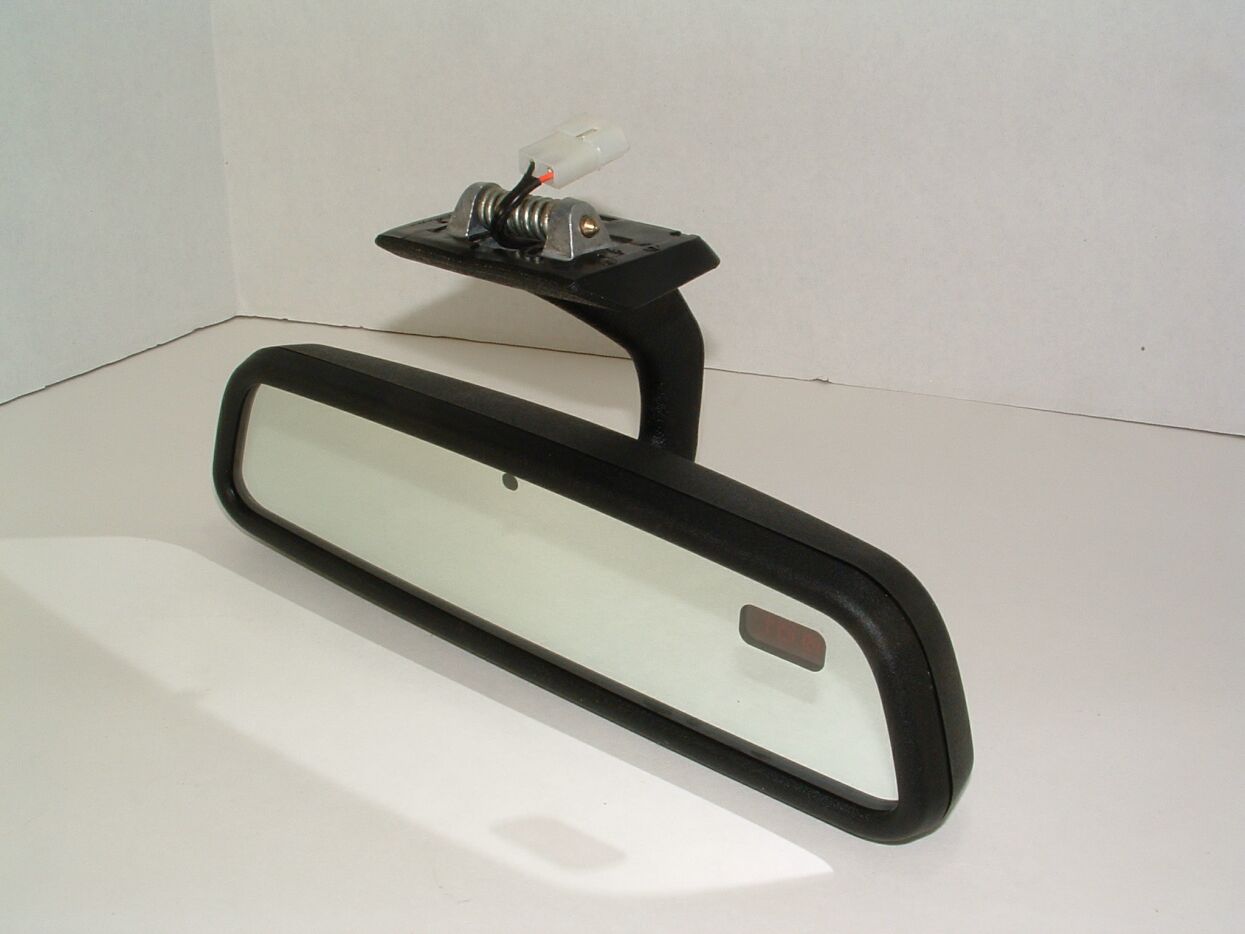

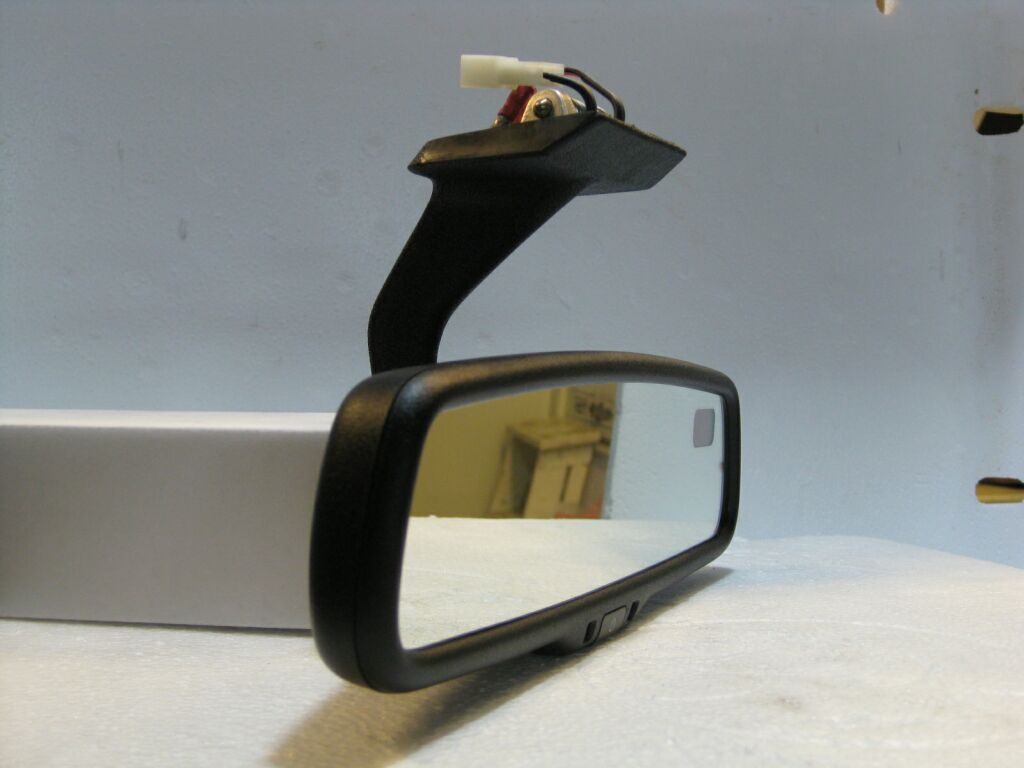

Mercedes W124/W201 Auto Dimming with Compass - Model 2M-2


This is the 260e/300e/400e/500e & 190e mirror.  The mounting stalk for both the W124 & W201 are the same.  Wiring is internal to the mirror/stalk and replicates the OEM look of the original non-auto dimming mirror.

Compass illumination is amber and dims when the mirror dims.  The compass can not be turned off.

This mirror does not have Homelink.



Shipping


Click the INQUIRY tab if you have a question.


_______________________________________________________________________________________________________


Mercedes W124/W201 Auto Dim on/off Mirror with Homelink - Model 2M-3


This is the 260e/300e/400e/500e & 190e mirror.  The mounting stalk for both the W124 & W201 are the same.  Wiring is internal to the mirror/stalk and replicates the OEM look of the original non-auto dimming mirror.

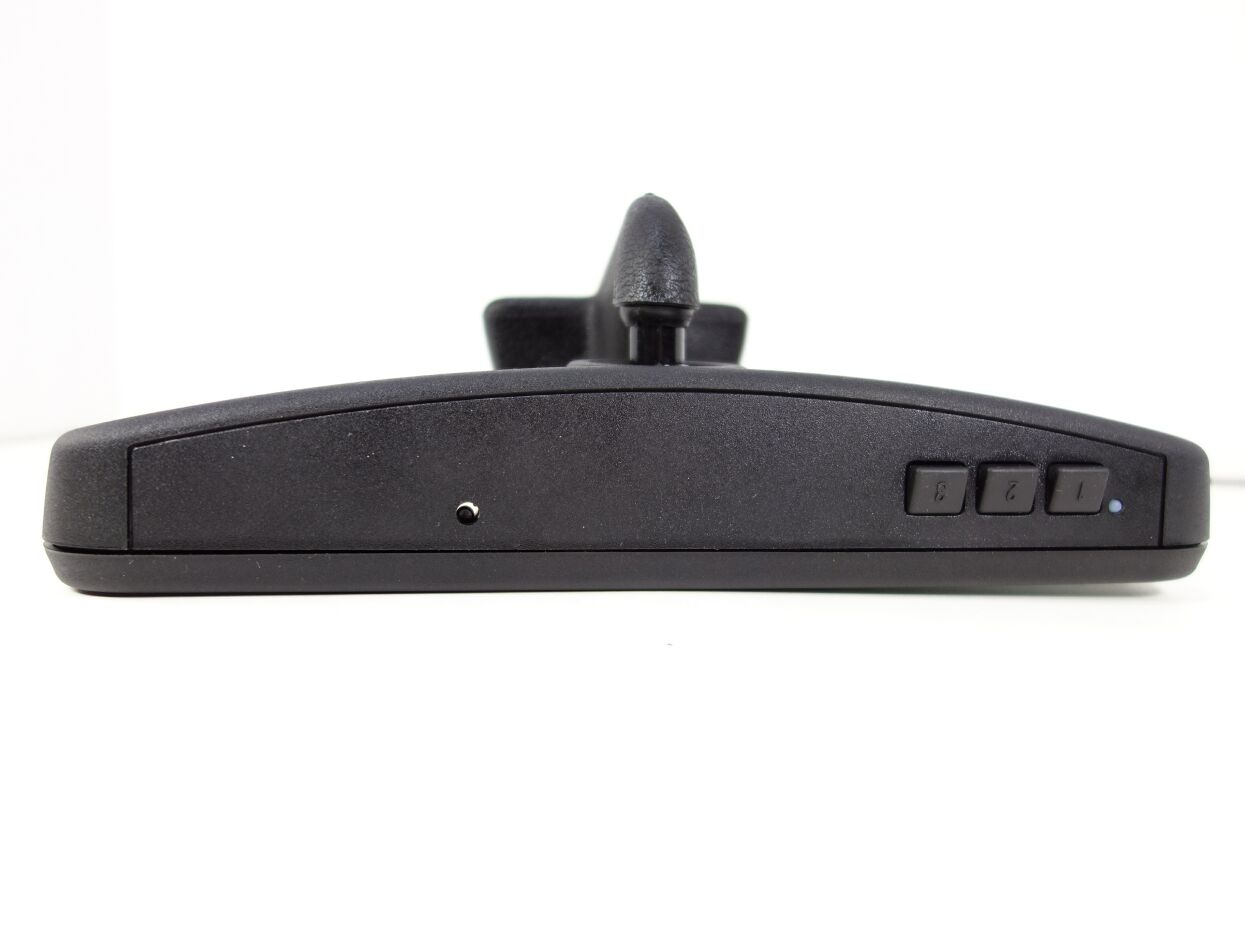

This is a auto dimming mirror with Homelink only.  The Homelink buttons are on the front of the mirror and this mirror has buttons to turn the auto dimming function on or off.


Discontinued


Click the INQUIRY tab if you have a question.


_______________________________________________________________________________________________________

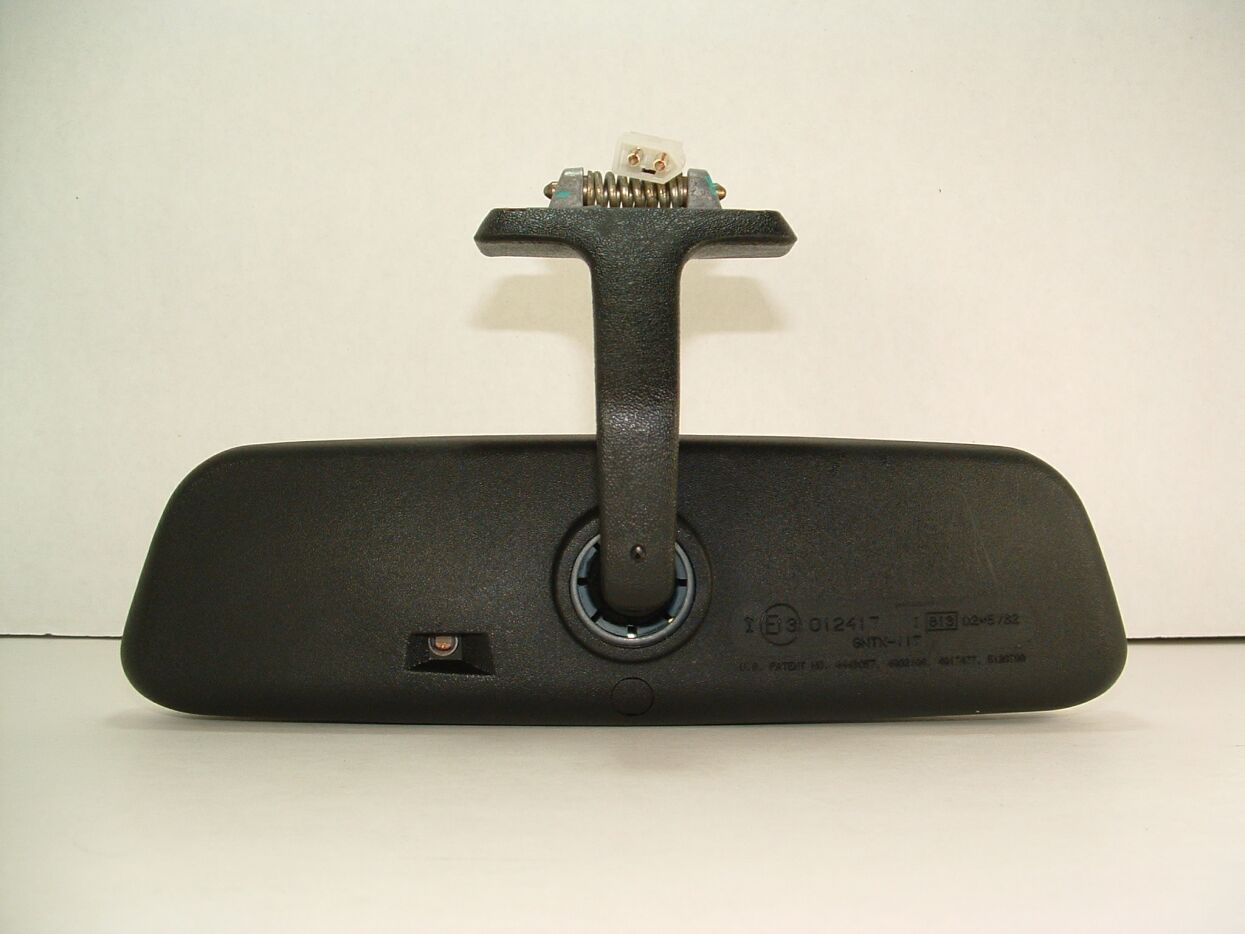

Mercedes W124/W201 Auto Dim Only Mirror w/on-off button - Model 2M-4


This is the 260e/300e/400e/500e & 190e mirror.  The mounting stalk for both the W124 & W201 are the same.  Wiring is internal to the mirror/stalk and replicates the OEM look of the original non-auto dimming mirror.

This is a "no frills" model.  It only has auto dimming, no compass or Homelink.  This mirror also includes a button to turn the auto dimming function on or off.  The green light indicates auto dimming is turned on.



Discontinued

Click the INQUIRY tab if you have a question.

_______________________________________________________________________________________________________


Mercedes W124/W201 Auto Dim Mirror w/on-off & Compass - Model 2M-5


This is the 260e/300e/400e/500e & 190e mirror.  The mounting stalk for both the W124 & W201 are the same.  Wiring is internal to the mirror/stalk and replicates the OEM look of the original non-auto dimming mirror.

This mirror has auto dimming and an amber colored compass (no Homelink).  This mirror also includes a button to turn the auto dimming function on/off and you can turn the compass on/off or any combination of the two functions.  The green light indicates auto dimming is turned on.



Shipping


Click the INQUIRY tab if you have a question.


_______________________________________________________________________________________________________


Mercedes W124/W201 Auto Dim Only Mirror - Model 2M-6


This is the 260e/300e/400e/500e & 190e mirror.  The mounting stalk for both the W124 & W201 are the same.  Wiring is internal to the mirror/stalk and replicates the OEM look of the original non-auto dimming mirror.

This is a "no frills" model.  It only has auto dimming, no compass or Homelink. This mirror does not come with a on/off switch for the auto dimming feature.



Shipping


Click the INQUIRY tab if you have a question.


_______________________________________________________________________________________________________


Mercedes W126 Auto Dim Mirror With Homelink & Compass - Model 2M-7


This is the W126 chassis mirror.  The mounting stalk is specific for the W126 chassis.  Wiring is internal to the mirror/stalk and replicates the OEM look of the original non-auto dimming mirror.

Compass illumination is amber and dims when the mirror dims.  The compass can not be turned off.

This mirror has Homelink and can control three garage doors/gates.  See Homelink notes at the top of the page.

Discontinued


Click the INQUIRY tab if you have a question.

_______________________________________________________________________________________________________



Mercedes W123/R107 Auto Dim with Homelink & Compass - Model 2M-8


This is the 200-300CD/560SL mirror.  The mounting stalk is specific for the W123/R107 chassis, but it may of been used on other models.  Wiring is internal to the mirror/stalk and replicates the OEM look of the original non-auto dimming mirror.

This mirror shape is a little different than what is used in the R107, it is thinner and longer.  R107 owners have not reported any visibility issues with this design.

Compass illumination is amber and dims when the mirror dims.  The compass can not be turned off.

This mirror has Homelink and can control three garage doors/gates.  See Homelink notes at the top of the page.

Discontinued


Click the INQUIRY tab if you have a question.

_______________________________________________________________________________________________________

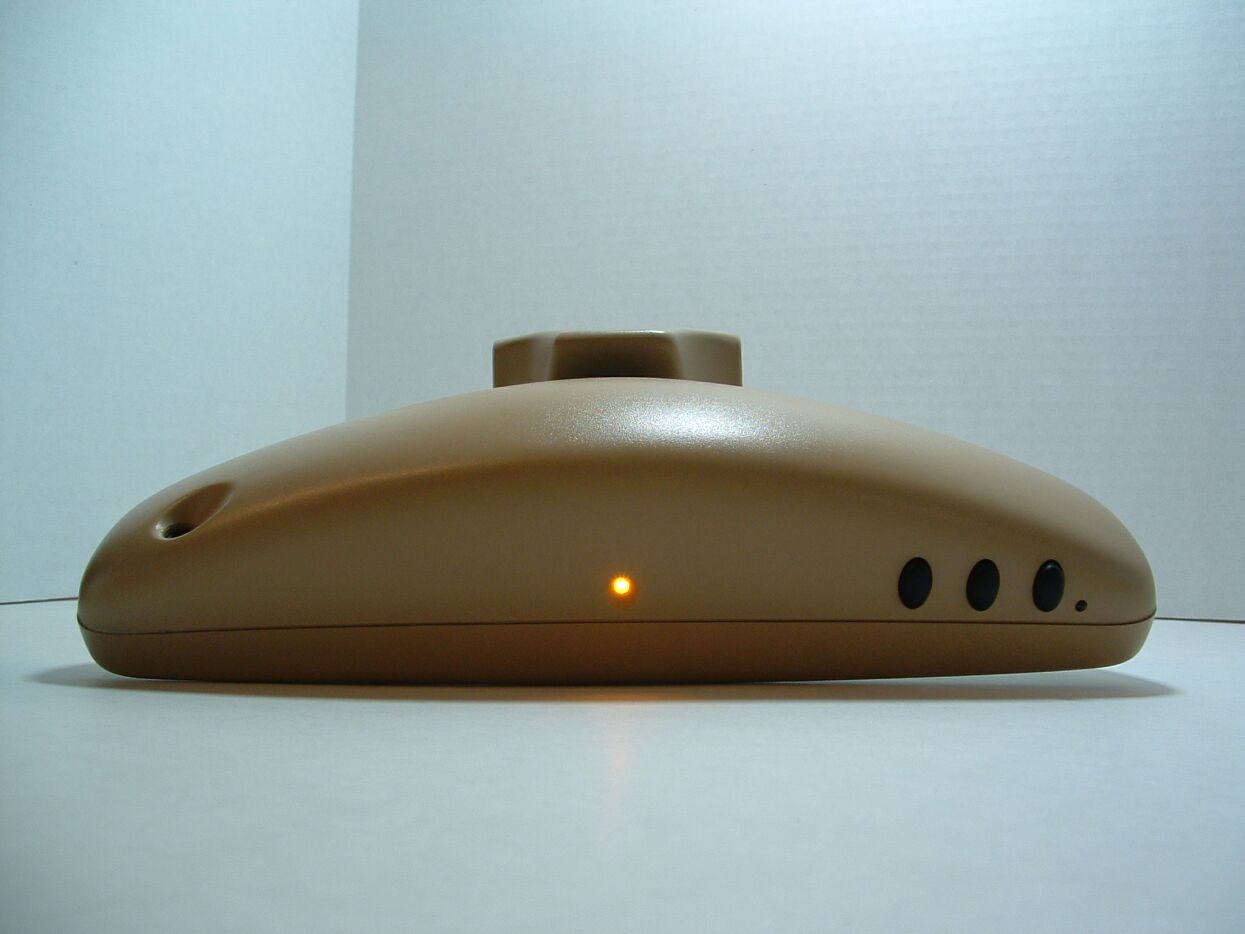

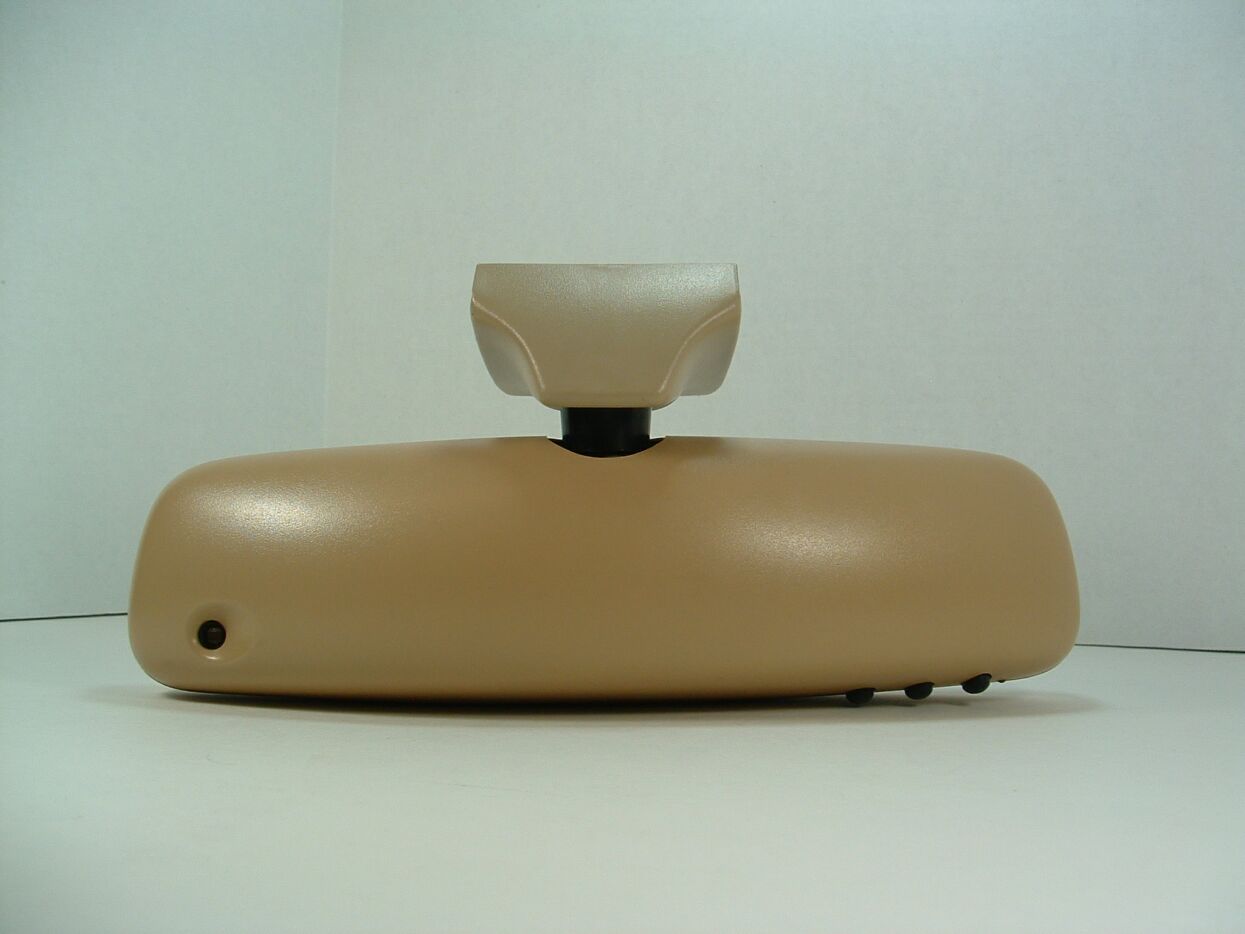

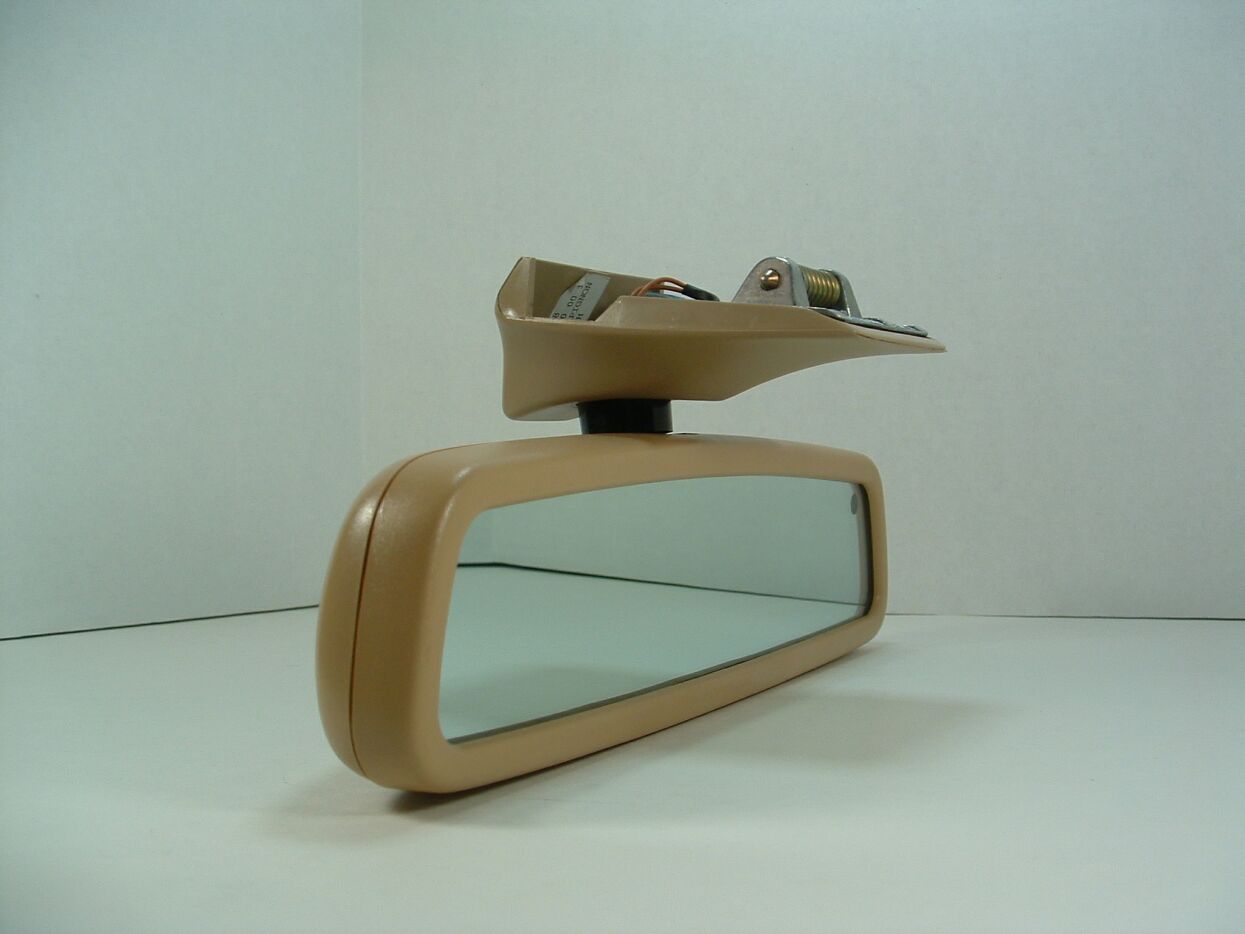

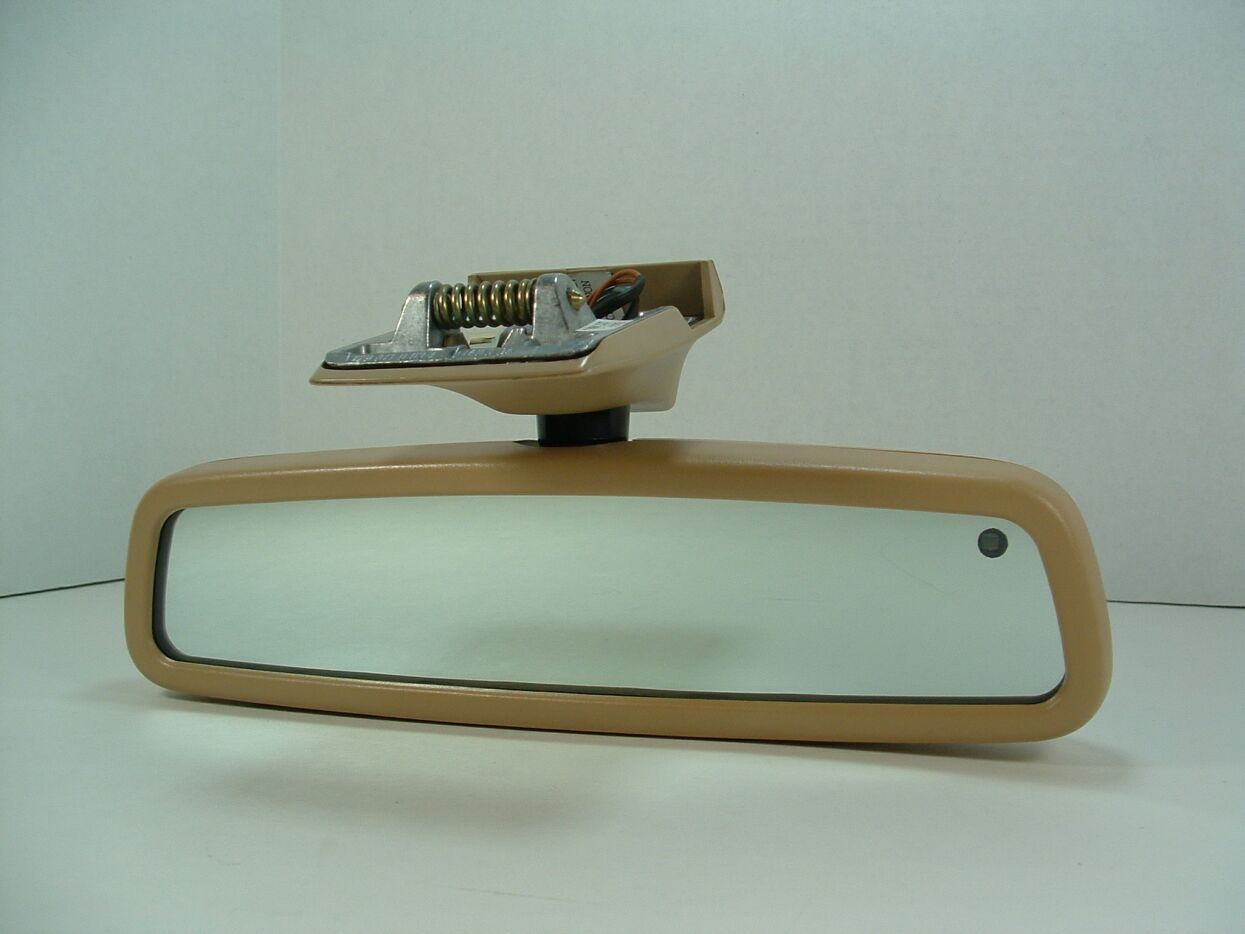

Mercedes W124 Cabriolet Auto Dimming with Homelink only - Model 2M-9

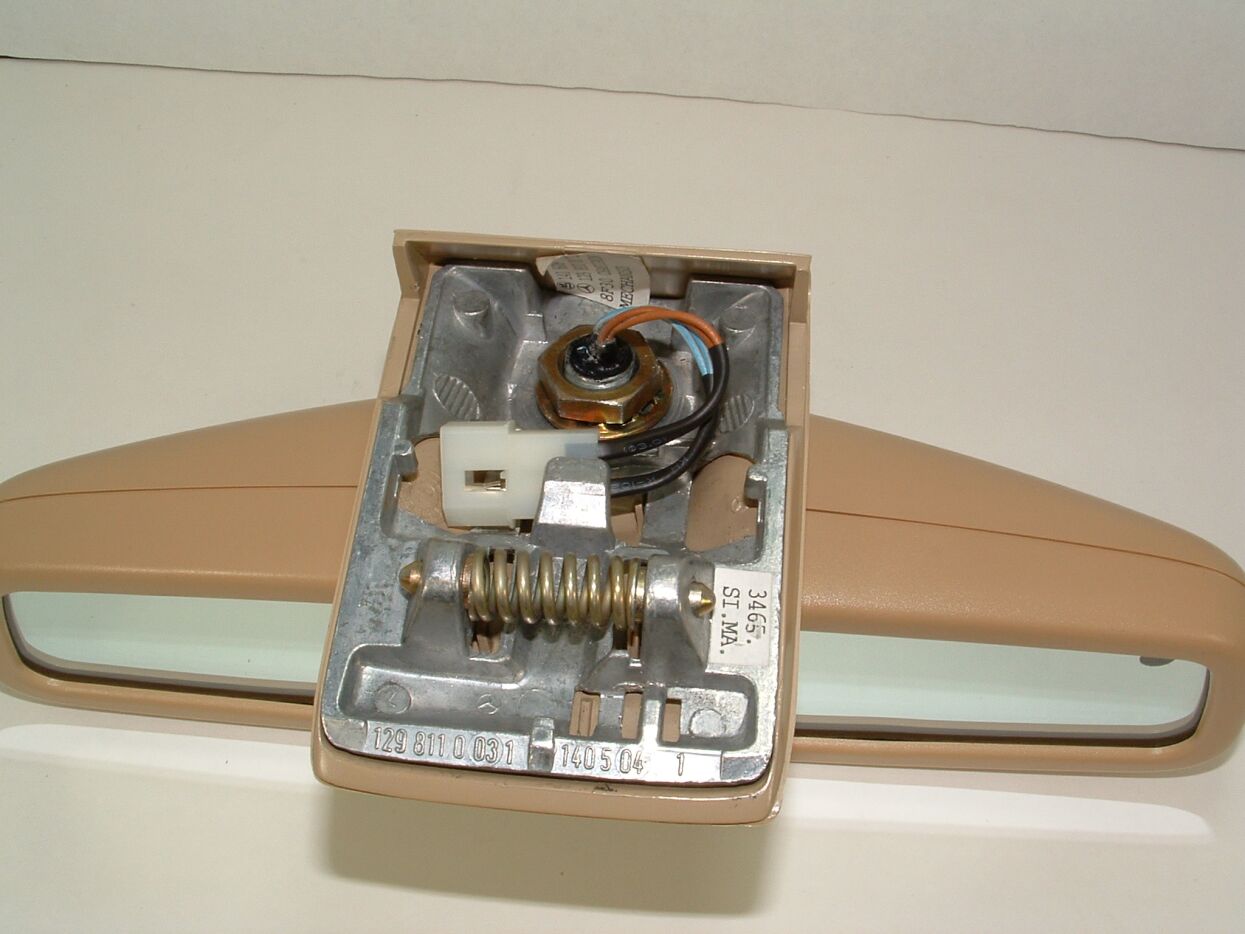

This is the W124 Cabriolet mirror (1993-1995).  The mounting stalk is specific for the cabriolet only.  Wiring is internal to the mirror/stalk and replicates the OEM look of the original non-auto dimming mirror.

This conversion requires your original cabriolet mirror (or just the bracket) be sent to me for use in the upgrade.

These are available in Parchment, Grey and Black.  Colors can be mixed also.  Some donor parts have amber LED's for console illumination.  The LED is a factory item and it turns on/off with the ignition.  Not all mirrors have this LED.

There is no compass available on this design, only auto dimming and Homelink.

Shipping


Click the INQUIRY tab if you have a question.

_______________________________________________________________________________________________________



Mercedes W126 Auto Dimming with Compass only - Model 2M-10


This is the W126 chassis mirror.  The mounting stalk is specific for the W126 chassis.  Wiring is internal to the mirror/stalk and replicates the OEM look of the original non-auto dimming mirror.

Compass illumination is amber and dims when the mirror dims.  The compass can not be turned off.

This mirror doe NOT come with Homelink.  Homelink W126 mirror is model 2M-7

Discontinued


Click the INQUIRY tab if you have a question.

_______________________________________________________________________________________________________



Mercedes W116 Auto Dimming with Compass & Homelink - Model 2M-11


This is the 1973-80 W116 chassis mirror.  The mounting stalk is specific for the W116 chassis.  Wiring is internal to the mirror/stalk and replicates the OEM look of the original non-auto dimming mirror.

This mirror is intended for W116 vehicles that originally came with a black rubberized mounting bracket.

Compass illumination is amber and dims when the mirror dims.  The compass can not be turned off.

This mirror has Homelink and can control three garage doors/gates.  See Homelink notes at the top of the page.

Discontinued


Click the INQUIRY tab if you have a question.

_______________________________________________________________________________________________________

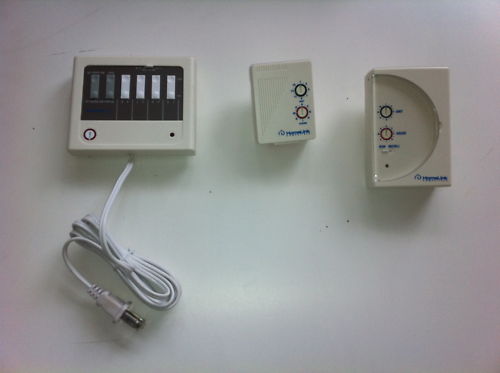

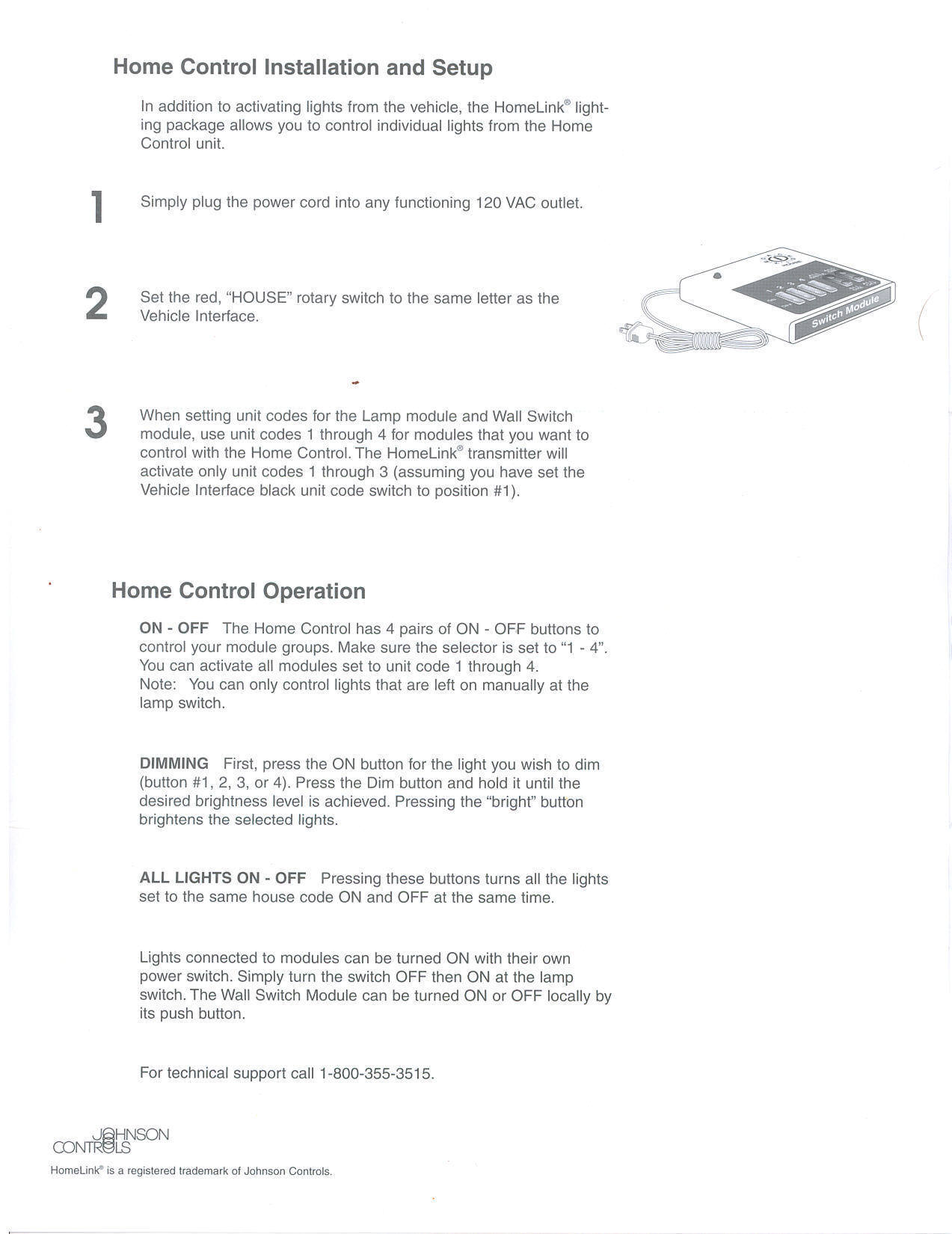

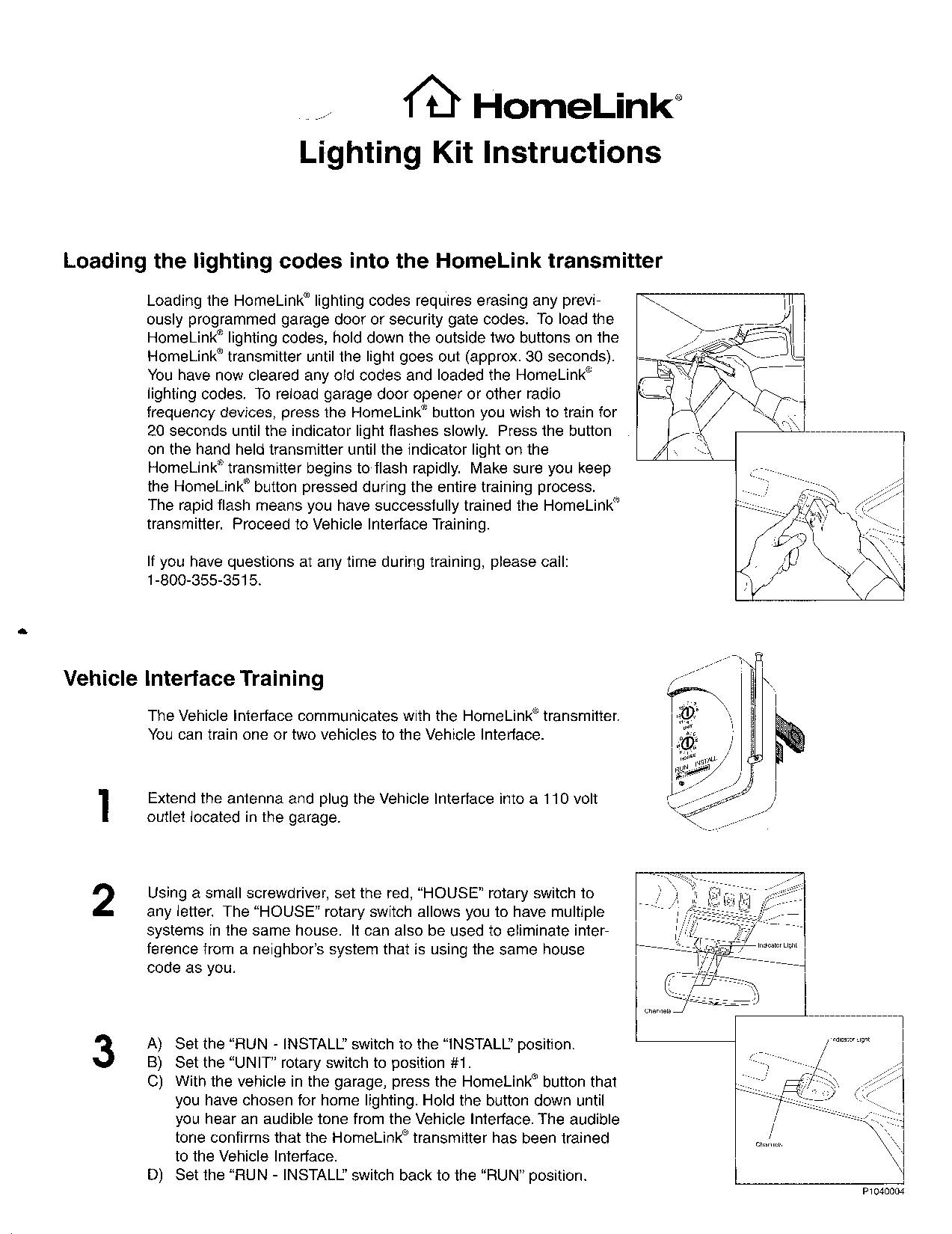

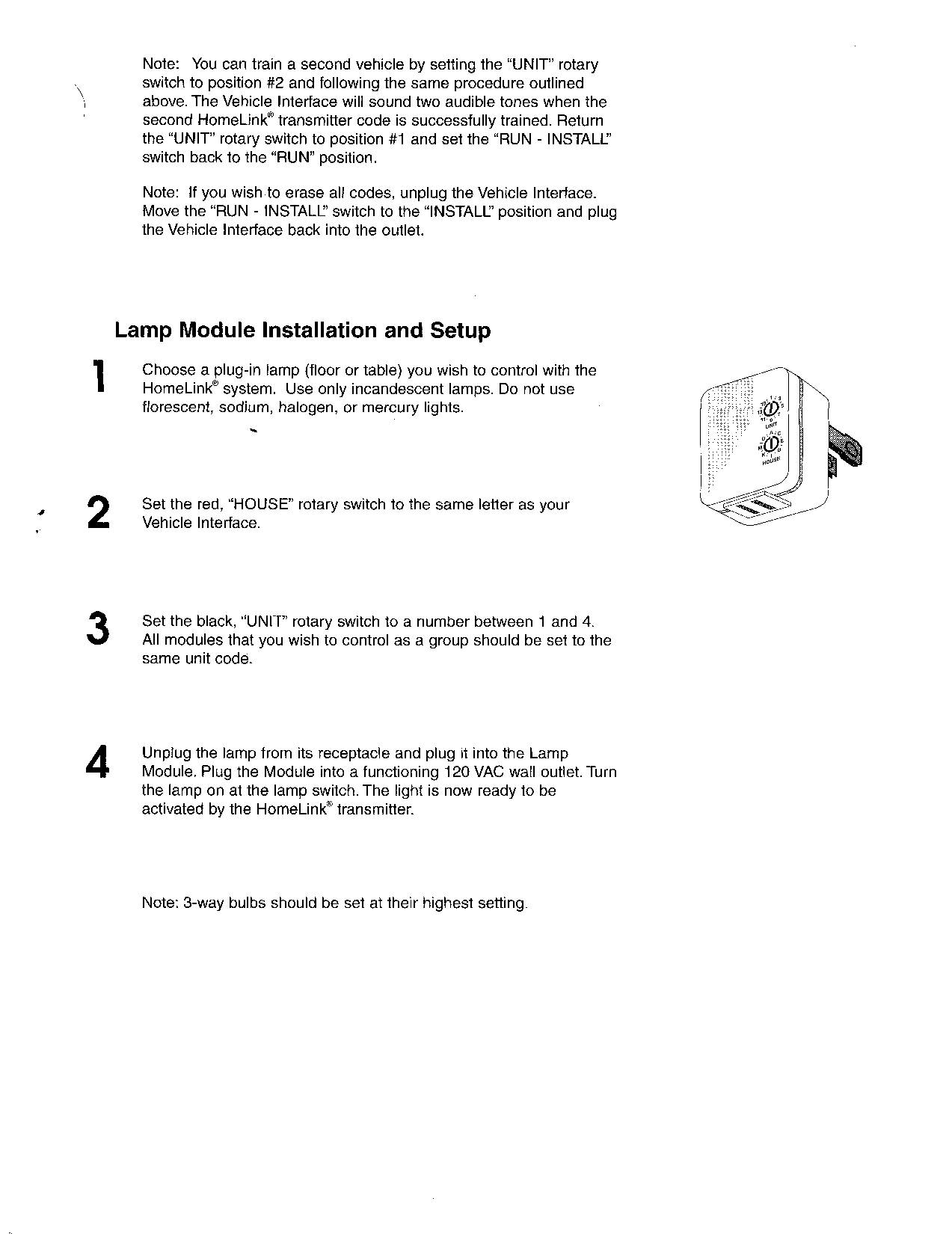

Mercedes Homelink Accessory Lighting Package - Model 2M-Homelink


With this accessory lighting kit, you can use your extra Homelink buttons to turn on/off lights or other small accessories in your home or garage.

The kit consists of a master home controller, vehicle interface and lamp module.  The lamp module accepts a two prong plug (not three) and is not intended for halogen or fluorescent lights.  Installation instructions in PDF format are
here.




(not usable outside the United States)


Click the INQUIRY tab if you have a question.



_______________________________________________________________________________________________________

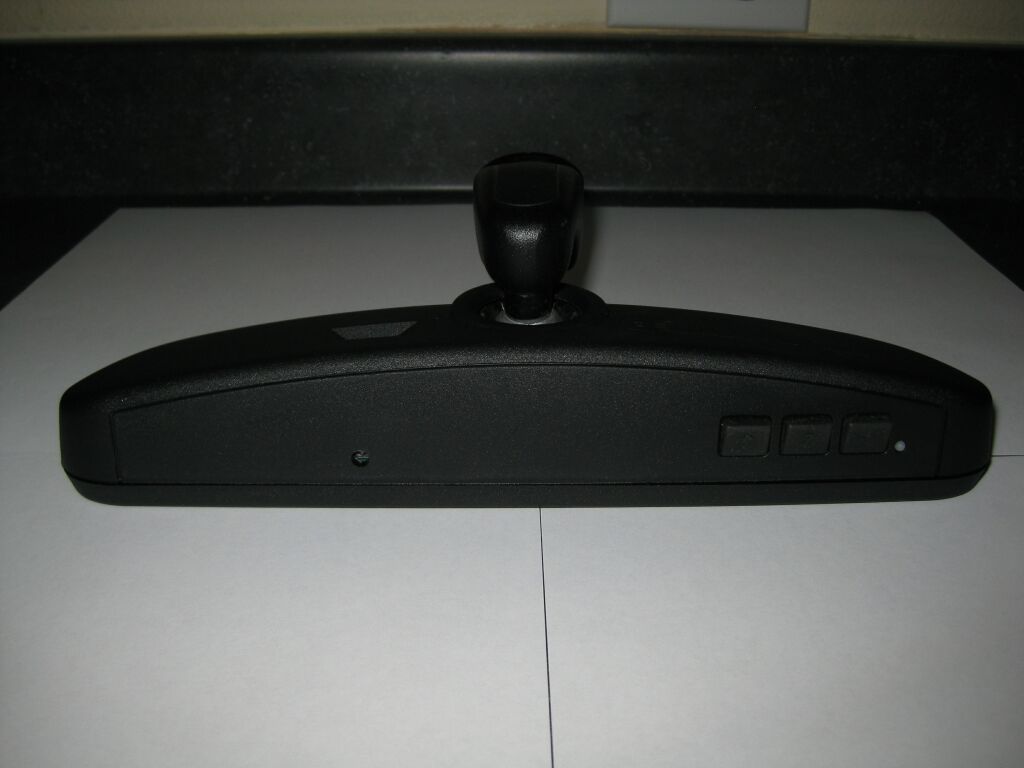

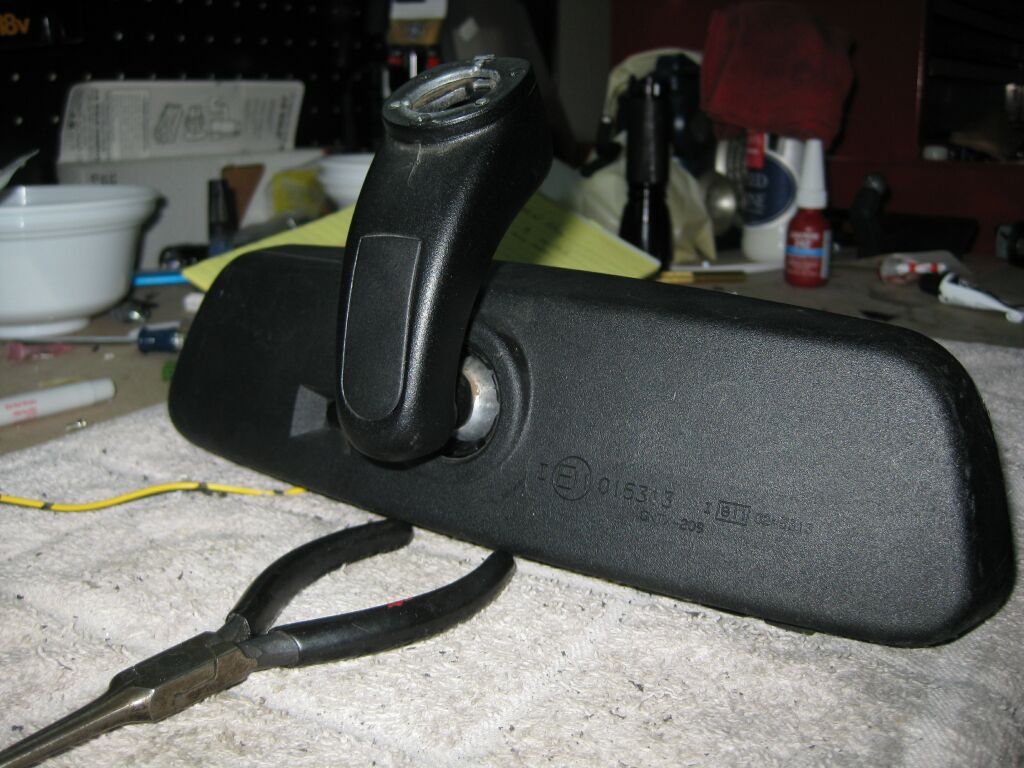

BMW 1995 M5 Auto Dim Mirror With Homelink & Compass (E34) - Custom order


This was a custom order for a 1995 M5.  This vehicle did not have a auto dimming mirror originally, so I modified one of my mirrors to use the OE BMW stalk.

The original mirror had a alarm receiver inside of it (see last picture) and under normal conditions, I would of installed this inside of the new mirror.  In this case, the alarm receiver would not fit because of the Homelink controls, so it was relocated outside of the mirror and mounted in the headliner.

Currently, I am not accepting any custom orders.

_______________________________________________________________________________________________________



Mercedes OEM W124/W201 Auto Dim Mirror With Homelink - Reference only


This was a optional item you could purchase through your dealer.  It was an auto dimming only mirror.  As you can see from the pictures, this OE mirror design changed over time.

I do not sell these and they are extremely difficult to find used.  As for buying them new, they are no longer available through Mercedes.

_______________________________________________________________________________________________________



Mercedes W124 Auto Dimming with on/off and map lights - Discontinued


This was a prototype built to test the viability of this particular mirror style.  Since it requires parts from several mirrors to build, it isn't a viable product at this time.

It has a integrated on/off for the auto dimming function.  It also has a pair of map lights on the bottom.  Each map light has its own integrated on/off button.

The stalk is specific for the W124/W201 chassis.  Wiring is internal to the mirror/stalk and replicates the OEM look of the original non-auto dimming mirror.


_______________________________________________________________________________________________________



Mercedes W124/W201 Auto Dim Mirror With Homelink - Discontinued


This is the W124/W201 mirror.  This design utilizes a factory Mercedes  auto dimming mirror.  The stalk mounting location is on the top, which requires additional trimming of the original W124/W201 stalk to get a proper fit.  Wiring is internal to the mirror/stalk.

This was a early design which has been discontinued due to the availability of mirrors that have a rear stalk mounting location.  I still use this mirror for W124 cabriolet conversions.  Contact me for more information.

_______________________________________________________________________________________________________



Mercedes W124/W201 Auto Dim with Homelink, Compass & LED - Discontinued


The mounting bracket for both the W124 & W201 are the same. Wiring is internal to the mirror/bracket and replicates the OEM look of the original non-auto dimming mirror. Compass illumination is amber and dims when the mirror dims.

Three Homelink buttons allow control of multiple garage door/gate systems.

This mirror also includes a alarm LED on the bottom of the mirror. It can be integrated into your factory security system or aftermarket security system

This is a discontinued model and is no longer available.


________________________________________________________________________________________________________


Other reference pictures








This is just filler because Google's browser gives me a headache





Installation of a compass mirror in a W116 450SE





Compass configuration & Homelink Setup




A auto dimming mirror with compass




Another auto dimming mirror with backup camera display




A very unique mirror with integrated GPS




W124 side-by-side comparison; OEM vs. Auto dim
ing





W124 mirror with custom alarm LED and on/off switch





W124 Cabriolet auto dimming mirror with Homelink #1k




W124 Cabriolet auto dimming mirror with Homelink #2k






Brett Carlock's review of his 2phast auto dimming mirrork
